Torsion spring

Torsion springs are coil springs. The end of the torsion spring is fixed to other components. When other components rotate around the center of the spring, the spring pulls them back to their original position to generate torque or rotating force. The torsion spring can store and release angular energy or statically fix a device by rotating the force arm around the central axis of the spring body.

Serial Number

Part Number

Material

Wire Diameter（mm）

Outside Diameter （mm）

Length of Leg1（mm）

Length of Leg2 （mm）

angles（°）

1	3.3.03.01.001.01	piano wire	2.40	11.50	48.00	48.00	150
2	3.4.03.24.001.01	SS304	0.70	11.20	19.00	19.00	90
3	3.3.03.01.003.01	piano wire	1.80	10.00	33.00	33.00	105
4	3.3.03.10.002.01	piano wire	2.50	13.30	49.00	49.00	135
5	3.5.03.13.001.01	piano wire	2.40	18.00	53.00	20.00	135
6	3.5.03.16.001.01	piano wire	1.00	7.00	19.00	11.00	90
7	3.8.03.04.001.01	piano wire	1.00	8.80	15.00	15.00	98
8	3.8.03.06.001.01	SS304	0.50	6.20	9.00	7.00	45
9	3.9.03.02.001.01	piano wire	3.00	21.00	48.00	43.00	35
10	3.9.03.06.002.01	Chrome Silicon Steel	5.50	55.00	80.00	80.00	100
11	3.9.03.07.018.01	SS304	1.60	11.60	17.60	17.60	135
12	3.9.03.07.031.01	piano wire	1.80	12.60	30.00	22.20	42
13	3.9.03.23.004.01	piano wire	7.20	84.00
14	3.9.03.07.089.01	SS304	4.00	28.00	34.00	34.00	90
15	3.9.03.07.090.01	SS304	4.00	28.00	34.00	34.00	90
16	3.9.03.07.097.01	piano wire	0.80	4.80	9.80	9.80	86
17	3.9.03.07.098.01	SS304	1.80	15.80	19.70	20.70	150
18	3.9.03.07.103.01	piano wire	1.70	17.40	43.70	10.00	30
19	3.9.03.07.104.01	piano wire	1.70	16.70	74.14	31.05	180
20	3.9.03.07.105.01	piano wire	1.60	17.60	48.80	8.80	0
21	3.9.03.06.009.01	Chrome Silicon Steel	6.00	44.00	62.00	62.00	105
22	3.9.03.07.101.01	SS304	0.70	3.20	11.56	11.56	90

Reference

Click on the thumbnail to enlarge image.

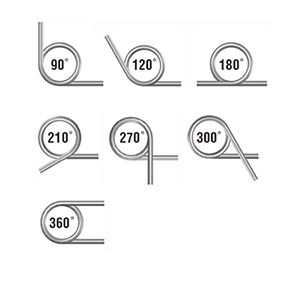

Free Angles

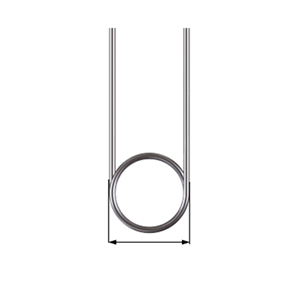

Outside Diameter

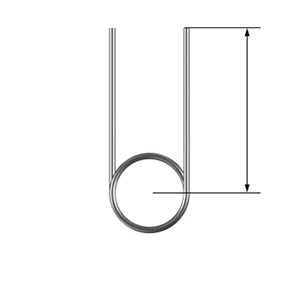

Leg Length

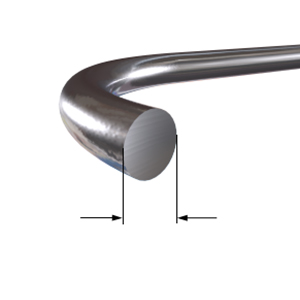

Wire Diameter
