Compression Springs

Compression spring (compression spring) is a helical spring that bears upward pressure. The material used for it is mostly circular in cross section, but also made of rectangular and multi strand steel. The spring is generally of equal pitch. The shapes of compression spring include cylindrical, conical, medium convex and medium concave, and a small number of non-circular. There is a certain gap between the coils of compression spring. When it is subjected to external load, the spring shrinks and deforms, storing deformation energy.

Serial number

Part Number

Material

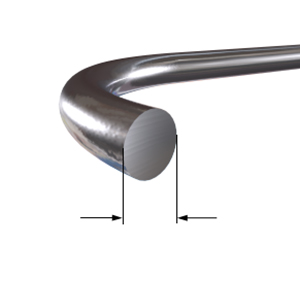

Wire Diameter
（mm）

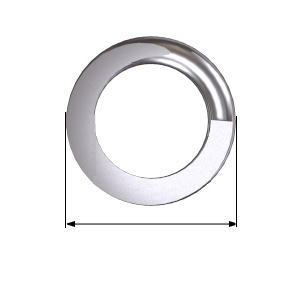

Outside Diameter
（mm）

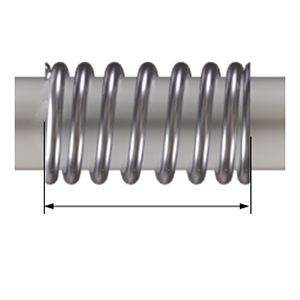

Free Length（mm）

Total number of turns
（mm）

Rate（N/mm）

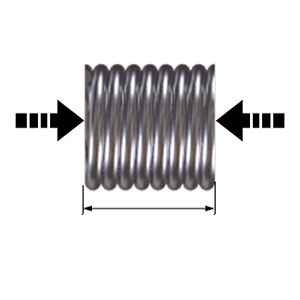

Solid Height（mm）

1	3.10.02.02.003.01	SS304	1.00	17.00	12.00	3.00	1.45	3.00
2	3.2.02.01.001.01	Chrome Silicon Steel	2.00	18.00	28.80	6.50	8.51	12.00
3	3.2.02.01.004.01	music wire	0.30	4.00	7.00	5.00	0.52	1.80
4	3.2.02.01.008.01	music wire	0.30	4.00	7.50	6.00	0.39	2.10
5	3.2.02.05.001.01	Chrome Silicon Steel	2.00	18.50	29.00	6.00	8.73	11.00
6	3.2.02.29.001.01	music wire	0.80	6.00	13.00	6.00	7.14	4.40
7	3.2.02.30.001.01	music wire	0.30	6.00	12.00	5.00	0.14	1.80
8	3.3.02.04.001.01	music wire	0.80	4.80	7.50	5.00	20.91	3.60
9	3.4.02.07.005.01	SS304	1.00	18.25	20.00	5.00	0.58	6.00
10	3.4.02.07.007.01	SS304	1.00	18.25	18.50	5.00	0.58	6.00
11	3.4.02.07.032.01	Nimonic 90	0.70	9.00	14.00	6.50	0.82	4.20
12	3.4.02.07.033.01	Nimonic 90	0.80	9.00	14.00	6.00	1.63	4.40
13	3.4.02.07.035.01	SS304	2.00	30.00	80.00	8.50	1.00	16.00
14	3.4.02.07.036.01	music wire	3.00	19.50	25.60	5.25	54.37	14.25
15	3.4.02.07.037.01	music wire	2.30	16.90	50.00	10.55	10.31	23.12
16	3.4.02.07.038.01	music wire	2.30	16.80	40.30	9.50	11.99	20.70
17	3.4.02.07.039.01	music wire	2.70	21.00	57.50	10.10	10.49	25.92
18	3.4.02.07.040.01	music wire	2.50	18.90	46.50	9.25	11.97	21.88
19	3.4.02.07.041.01	SS304	0.50	5.00	12.00	7.00	1.23	3.25
20	3.4.02.07.042.01	SS304	0.50	5.00	17.00	12.20	0.60	5.85
21	3.4.02.07.044.01	SS304	0.50	5.00	17.00	11.40	0.65	5.45
22	3.4.02.07.045.01	SS304	0.50	5.00	17.00	10.70	0.70	5.10
23	3.4.02.07.046.01	SS304	0.50	5.00	17.00	10.20	0.75	4.85
24	3.4.02.07.047.01	SS304	0.55	5.10	17.00	12.90	0.80	6.82
25	3.4.02.07.048.01	SS304	0.55	5.10	17.00	12.20	0.85	6.44
26	3.4.02.07.052.01	SS304	2.80	34.60	38.00	5.00	5.69	12.60
27	3.4.02.07.053.01	SS304	3.00	41.00	43.00	5.00	4.40	13.50
28	3.4.02.07.054.01	SS304	3.50	45.50	44.00	5.00	6.03	15.75
29	3.4.02.07.056.01	Chrome Silicon Steel	2.50	19.70	40.65	7.75	13.08	18.13
30	3.4.02.07.057.01	Chrome Silicon Steel	2.60	19.08	36.90	7.75	17.40	18.85
31	3.4.02.07.058.01	Chrome Silicon Steel	2.60	18.92	35.50	7.50	18.73	18.20
32	3.4.02.07.059.01	music wire	2.30	17.80	37.60	8.00	12.27	17.25
33	3.4.02.07.060.01	music wire	2.70	21.00	55.50	10.00	10.62	25.65
34	3.4.02.07.061.01	Chrome Silicon Steel	3.40	26.70	46.00	7.00	20.71	22.10
35	3.4.02.07.062.01	Chrome Silicon Steel	2.40	18.90	40.90	8.50	11.14	19.20
36	3.4.02.07.066.01	SS304	2.50	13.30	45.00	12.00	27.71	28.75
37	3.4.02.07.067.01	SS304	3.00	20.00	45.00	8.00	24.56	22.50
38	3.4.02.07.069.01	SS304	0.80	8.30	11.00	8.00	1.45	6.00
39	3.4.02.07.070.01	SS304	0.80	8.30	11.00	6.50	1.93	4.80
40	3.4.02.07.074.01	music wire	0.90	11.50	11.50	4.50	2.16	3.60
41	3.4.02.07.079.01	SS304	5.00	38.00	68.00	7.00	31.09	32.50
42	3.4.02.07.080.01	Chrome Silicon Steel	2.60	20.50	81.00	13.60	6.73	34.06
43	3.4.02.07.086.01	music wire	0.70	8.90	10.50	5.50	1.22	3.50
44	3.4.02.07.098.01	SS304	0.20	3.40	6.00	12.70	0.05	2.74
45	3.4.02.07.099.01	SS304	0.20	3.40	7.00	12.70	0.05	2.74
46	3.4.02.07.100.01	SS304	0.20	3.40	8.00	12.70	0.05	2.74
47	3.4.02.07.101.01	SS304	0.20	3.40	5.00	8.40	0.10	1.88
48	3.4.02.07.102.01	SS304	0.20	3.40	6.00	8.40	0.10	1.88
49	3.4.02.07.103.01	SS304	0.20	3.40	7.00	8.40	0.10	1.88
50	3.4.02.07.104.01	SS304	0.80	8.30	12.00	6.30	2.02	4.64
51	3.4.02.07.105.01	SS304	0.80	8.30	12.00	4.90	2.99	3.52
52	3.4.02.07.106.01	SS304	0.90	8.50	12.00	5.35	3.99	4.37
53	3.4.02.07.107.01	SS304	1.00	7.70	12.00	5.30	9.00	4.80
54	3.4.02.07.108.01	SS304	1.10	7.80	12.00	4.75	15.82	4.68
55	3.4.02.07.109.01	SS304	0.20	3.40	5.00	6.20	0.20	1.44
56	3.4.02.07.111.01	SS304	0.20	3.40	7.00	6.20	0.20	1.44
57	3.4.02.07.112.01	music wire	4.50	31.50	50.80	6.50	45.37	27.00
58	3.4.02.07.113.01	Chrome Silicon Steel	3.80	25.40	46.20	6.20	48.28	21.66
59	3.4.02.07.114.01	music wire	2.20	17.50	19.00	5.00	21.37	9.90
60	3.4.02.07.115.01	music wire	2.50	19.00	28.00	5.00	28.41	11.25
61	3.4.02.07.120.01	music wire	1.10	12.20	32.00	9.60	1.38	10.01
62	3.4.02.17.001.01	SS304	0.80	18.90	20.00	5.00	0.21	4.00
63	3.4.02.17.003.01	SS304	0.80	18.40	20.00	6.00	0.17	4.80
64	3.4.02.17.004.01	SS304	0.80	18.40	18.00	6.50	0.15	5.20
65	3.4.02.21.001.01	SS304	0.60	14.90	30.00	7.50	0.07	4.50
66	3.4.02.21.002.01	SS304	0.60	14.90	35.00	7.50	0.07	4.50
67	3.4.02.24.002.01	Chrome Silicon Steel	2.60	16.95	35.00	8.00	25.26	19.50
68	3.4.02.24.003.01	Chrome Silicon Steel	2.50	19.80	45.70	8.10	12.12	19.00
69	3.4.02.24.004.01	Chrome Silicon Steel	2.00	14.50	34.00	8.10	13.16	15.20
70	3.4.02.24.005.01	Chrome Silicon Steel	2.40	18.55	51.00	10.40	9.19	23.76
71	3.4.02.24.006.01	Chrome Silicon Steel	2.40	20.30	65.00	11.90	5.73	27.36
72	3.4.02.24.007.01	Chrome Silicon Steel	2.60	18.80	37.70	6.75	22.18	16.25
73	3.4.02.24.008.01	Chrome Silicon Steel	2.40	18.50	53.40	10.50	9.17	24.00
74	3.4.02.24.010.01	Chrome Silicon Steel	4.80	50.20	74.00	5.00	18.53	21.60
75	3.4.02.24.011.01	Chrome Silicon Steel	4.30	50.00	133.00	7.10	6.88	28.38
76	3.4.02.24.015.01	Chrome Silicon Steel	2.60	20.00	49.80	8.75	12.59	21.45
77	3.4.02.24.016.01	Chrome Silicon Steel	2.60	20.39	77.40	13.40	6.98	33.54
78	3.4.02.24.018.01	Chrome Silicon Steel	3.00	25.30	45.00	8.00	14.32	22.50
79	3.5.02.04.015.01	music wire	1.20	10.60	9.60	4.75	8.90	5.10
80	3.5.02.04.016.01	music wire	1.20	9.30	20.00	7.00	7.65	7.80
81	3.5.02.04.017.01	music wire	1.10	10.60	15.50	5.50	5.26	5.50
82	3.5.02.04.021.01	music wire	1.00	9.00	19.63	6.50	4.25	6.00
83	3.5.02.04.022.01	music wire	1.40	11.00	38.25	9.00	6.08	11.90
84	3.5.02.04.026.01	17-7	1.50	8.00	20.00	7.00	33.87	9.75
85	3.5.02.04.027.01	17-7	1.50	7.00	18.00	7.00	55.91	9.75
86	3.5.02.04.028.01	17-7	1.00	6.00	14.00	6.00	18.38	5.50
87	3.5.02.108.001.01	music wire	6.00	38.00	49.50	6.00	96.90	33.00
88	3.5.02.11.001.01	music wire	1.40	14.80	40.00	10.75	1.79	14.35
89	3.5.02.110.001.01	music wire	0.40	3.10	6.20	7.00	2.55	3.20
90	3.5.02.130.001.01	SS304	0.50	7.30	20.00	8.75	0.26	4.88
91	3.5.02.130.002.01	SS304	0.50	7.30	17.00	7.50	0.32	4.25
92	3.5.02.131.001.01	SS304	1.40	19.80	30.00	6.75	1.16	8.75
93	3.5.02.132.001.01	SS304	1.00	10.60	33.00	9.00	1.44	8.50
94	3.5.02.136.001.01	SS304	1.20	17.20	16.00	3.00	4.52	3.00
95	3.5.02.139.006.01	SS304	0.60	5.60	8.00	5.00	3.09	2.70
96	3.5.02.139.007.01	SS304	2.20	14.70	42.00	13.00	9.75	27.50
97	3.5.02.139.008.01	SS304	3.00	25.70	45.00	5.50	17.68	15.00
98	3.5.02.139.009.01	Chrome Silicon Steel	6.00	34.00	66.00	7.50	105.19	42.00
99	3.5.02.148.001.01	music wire	1.20	11.20	45.00	10.50	2.39	12.00
100	3.5.02.155.001.01	SS304	0.45	7.20	23.50	9.50	0.16	4.28
101	3.5.02.162.001.01	SS304	0.30	4.30	7.80	5.00	0.38	1.80
102	3.5.02.163.001.01	SS304	1.10	14.00	39.00	7.00	1.22	7.15
103	3.5.02.167.001.01	SS304	0.50	7.30	25.50	10.75	0.20	5.88
104	3.5.02.168.001.01	SS304	1.60	14.50	35.50	9.50	3.64	14.40
105	3.5.02.21.001.01	music wire	1.20	7.20	16.00	9.00	13.44	10.20
106	3.5.02.24.001.01	SS304	1.40	33.00	260.00	23.75	0.05	32.55
107	3.5.02.24.001.02	SS304	0.40	4.90	7.50	5.25	0.77	1.90
108	3.5.02.26.001.01	music wire	0.80	8.20	19.00	8.00	1.65	6.00
109	3.5.02.28.001.01	SS304	0.75	6.70	23.50	9.50	1.79	7.88
110	3.5.02.28.003.01	music wire	3.00	41.00	50.00	5.00	4.82	13.50
111	3.5.02.31.001.01	SS304	0.40	4.50	7.00	7.00	0.66	3.20
112	3.5.02.31.002.01	SS304	0.45	5.60	7.00	7.00	0.54	3.60
113	3.5.02.32.001.01	SS304	0.60	10.20	21.00	12.00	0.13	6.90
114	3.5.02.33.001.01	SS304	0.80	14.20	18.00	6.25	0.36	4.60
115	3.5.02.35.001.01	SS304	0.60	16.00	28.00	6.50	0.07	3.60
116	3.5.02.47.001.01	Chrome Silicon Steel	3.00	22.40	108.00	15.00	8.36	43.50
117	3.5.02.63.002.01	music wire	7.00	39.00	49.50	4.70	265.95	29.40
118	3.5.02.70.001.01	music wire	0.70	3.40	17.00	17.75	7.59	12.08
119	3.5.02.79.001.01	music wire	2.00	12.00	15.00	5.00	52.27	9.00
120	3.5.02.97.001.01	SS304	0.80	12.80	15.00	4.50	0.85	3.20
121	3.5.02.98.001.01	music wire	1.20	9.50	14.80	5.50	10.15	6.00
122	3.7.02.02.001.01	SS304	0.40	8.00	9.00	5.50	0.15	2.20
123	3.7.02.03.001.01	music wire	1.20	7.20	28.00	11.00	10.45	12.60
124	3.7.02.04.001.01	music wire	1.00	7.30	25.00	12.50	3.73	12.00
125	3.7.02.05.001.01	music wire	1.20	10.80	57.00	17.00	1.53	19.80
126	3.7.02.06.001.01	music wire	1.40	21.40	56.00	6.00	1.18	7.70
127	3.7.02.08.001.01	music wire	1.30	7.30	35.00	18.00	8.10	22.75
128	3.7.02.09.001.01	music wire	1.80	30.80	62.00	6.00	1.05	9.90
129	3.7.02.10.001.01	music wire	1.50	30.50	62.00	6.00	0.51	8.25
130	3.7.02.11.001.01	music wire	2.20	31.20	45.50	5.00	3.14	9.90
131	3.7.02.12.001.01	music wire	1.70	8.30	19.70	8.00	47.45	12.75
132	3.7.02.13.001.01	music wire	1.40	8.10	31.60	13.50	10.88	18.20
133	3.7.02.14.001.01	music wire	1.80	17.30	65.00	10.00	3.45	17.10
134	3.7.02.15.001.01	music wire	1.60	26.00	34.00	5.00	1.47	7.20
135	3.7.02.16.001.01	music wire	1.80	19.80	46.00	6.50	3.92	10.80
136	3.7.02.18.001.01	music wire	2.10	16.10	40.00	8.00	11.58	15.75
137	3.7.02.19.001.01	music wire	1.20	11.20	35.00	8.50	3.13	9.60
138	3.7.02.21.001.01	music wire	1.60	18.80	31.00	5.60	3.51	8.16
139	3.7.02.22.001.01	music wire	2.20	27.20	42.00	4.75	5.34	9.35
140	3.7.02.26.001.01	music wire	1.10	10.70	57.00	17.00	1.08	18.15
141	3.7.02.27.001.01	music wire	1.60	10.20	35.00	11.00	11.22	16.80
142	3.7.02.28.001.01	music wire	2.20	26.90	30.00	5.00	5.08	9.90
143	3.7.02.29.001.01	music wire	1.50	9.00	15.00	6.00	29.40	8.25
144	3.7.02.31.001.01	music wire	1.60	19.00	31.00	7.00	2.44	10.40
145	3.7.02.32.001.01	music wire	1.60	8.30	31.00	13.00	19.41	20.00
146	3.7.02.33.001.01	music wire	1.60	9.90	27.80	12.00	11.23	18.40
147	3.7.02.34.001.01	music wire	1.60	10.50	35.00	11.00	10.12	16.80
148	3.7.02.35.001.01	music wire	1.40	7.40	23.00	9.00	24.90	11.90
149	3.7.02.36.001.01	music wire	0.80	6.50	16.00	9.00	3.10	6.80
150	3.7.02.60.001.01	music wire	1.20	7.40	24.50	11.00	9.47	12.60
151	3.7.02.72.004.01	music wire	1.00	10.00	1000	100.00	0.14	100.00
152	3.8.02.04.001.01	SS304	1.00	7.00	9.70	5.00	13.79	4.50
153	3.8.02.04.002.01	SS304	1.00	7.50	11.00	5.00	10.85	4.50
154	3.8.02.05.003.01	music wire	3.00	17.90	18.80	4.25	106.65	11.25
155	3.8.02.07.007.01	Chrome Silicon Steel	4.00	31.50	29.00	3.75	68.93	13.00
156	3.8.02.08.005.01	Chrome Silicon Steel	3.20	26.70	37.50	5.50	22.62	16.00
157	3.8.02.08.007.01	Chrome Silicon Steel	3.50	27.30	32.00	4.75	39.67	14.88
158	3.8.02.11.020.01	SS304	1.60	12.50	26.00	6.00	11.31	8.80
159	3.8.02.11.021.01	SS304	1.40	10.30	17.50	6.50	10.82	8.40
160	3.8.02.11.025.01	music wire	1.30	11.00	28.00	8.30	4.87	10.14
161	3.8.02.11.026.01	music wire	1.00	9.00	19.00	5.70	5.17	5.20
162	3.8.02.11.027.01	SS304	1.60	10.50	30.00	8.00	13.85	12.00
163	3.8.02.11.028.01	music wire	1.70	9.14	26.20	9.00	28.39	14.45
164	3.8.02.11.029.01	SS304	1.20	8.10	18.00	6.00	14.10	6.60
165	3.8.02.11.030.01	music wire	1.50	10.00	21.00	8.00	13.46	11.25
166	3.8.02.11.036.01	SS304	1.80	14.70	44.45	6.00	10.93	9.90
167	3.8.02.13.001.01	SS304	1.00	7.70	28.50	9.00	4.25	8.50
168	3.8.02.16.001.01	SS304	0.90	8.10	25.00	7.50	2.86	6.30
169	3.8.02.17.001.01	SS304	1.50	17.30	29.70	6.00	2.87	8.25
170	3.8.02.19.003.01	SS304	1.00	6.85	9.60	5.00	14.88	4.50
171	3.8.02.19.004.01	SS304	1.00	6.85	10.00	5.00	14.88	4.50
172	3.8.02.19.005.01	SS304	1.00	7.00	10.00	5.00	13.79	4.50
173	3.8.02.19.006.01	SS304	1.00	6.85	9.30	5.00	14.88	4.50
174	3.8.02.19.007.01	SS304	1.00	6.80	10.00	5.00	15.27	4.50
175	3.8.02.23.001.01	music wire	2.50	15.00	16.50	3.90	103.16	8.50
176	3.8.02.24.002.01	SS304	1.40	12.70	25.00	7.50	4.33	9.80
177	3.8.02.26.001.01	SS304	0.50	7.00	25.00	8.00	0.34	3.75
178	3.8.02.35.001.01	SS304	1.60	11.46	28.19	6.00	15.28	8.80
179	3.8.02.41.001.01	SS304	1.00	6.85	9.60	4.50	17.86	4.00
180	3.8.02.43.001.02	SS304	1.00	7.00	10.20	5.00	13.79	4.50
181	3.8.02.46.001.01	SS304	1.20	7.50	13.00	5.50	21.18	6.00
182	3.8.02.49.001.01	Chrome Silicon Steel	7.00	51.00	110.00	8.00	46.04	52.50
183	3.8.02.51.001.01	Chrome Silicon Steel	9.00	60.00	110.00	7.50	88.13	63.00
184	3.8.02.53.001.01	SS304	1.00	9.50	21.00	6.00	3.64	5.50
185	3.8.02.55.001.01	SS304	0.90	6.00	18.00	9.00	6.32	7.65
186	3.8.02.57.001.01	music wire	1.60	30.70	130.00	27.50	0.12	43.20
187	3.8.02.59.001.01	SS304	1.00	6.85	9.60	4.50	17.86	4.00
188	3.8.02.60.001.01	SS304	1.30	15.25	37.00	9.00	1.34	11.05
189	3.9.02.013.001.01	music wire	1.60	10.50	29.00	8.00	15.18	12.00
190	3.9.02.016.001.01	music wire	1.60	20.17	58.70	9.50	1.34	14.40
191	3.9.02.017.025.01	music wire	1.00	11.50	37.00	7.50	1.54	7.00
192	3.9.02.017.026.01	music wire	3.00	13.70	19.50	3.80	359.99	9.90
193	3.9.02.017.027.01	music wire	0.90	13.90	19.00	4.50	1.17	3.60
194	3.9.02.017.028.01	music wire	1.40	9.30	13.00	3.80	42.42	4.62
195	3.9.02.017.029.01	music wire	0.60	7.80	30.00	9.00	0.49	5.10
196	3.9.02.017.030.01	music wire	0.60	7.60	30.00	13.00	0.34	7.50
197	3.9.02.017.033.01	SS304	0.70	15.70	34.40	12.00	0.06	8.05
198	3.9.02.017.034.01	SS304	0.20	3.30	10.20	17.00	0.03	3.60
199	3.9.02.017.068.01	SS304	1.50	13.00	45.00	11.00	3.31	15.75
200	3.9.02.017.086.01	Inconel 718	2.00	18.00	28.50	8.00	5.70	15.00
201	3.9.02.017.088.01	SS304	0.40	5.60	16.40	9.50	0.22	3.60
202	3.9.02.017.089.01	SS304	0.50	5.80	18.80	8.50	0.58	4.00
203	3.9.02.017.090.01	SS304	0.60	5.90	18.40	10.50	0.92	6.00
204	3.9.02.017.109.01	music wire	1.20	10.67	125.50	31.50	0.81	37.20
205	3.9.02.017.110.01	Chrome Silicon Steel	4.00	29.00	130.00	9.50	21.41	36.00
206	3.9.02.017.111.01	music wire	5.00	36.40	51.00	5.50	56.53	25.00
207	3.9.02.017.114.01	17-7	8.00	48.00	67.00	6.50	130.67	48.00
208	3.9.02.017.124.01	17-7	6.50	28.20	40.30	5.30	486.36	31.20
209	3.9.02.017.127.01	music wire	2.20	18.40	26.40	5.00	18.00	9.90
210	3.9.02.017.129.01	music wire	2.40	20.57	34.95	5.60	15.06	12.24
211	3.9.02.017.130.01	Chrome Silicon Steel	2.40	20.57	34.95	5.60	15.06	12.24
212	3.9.02.019.004.01	SS304	3.50	20.50	30.50	4.50	109.19	14.00
213	3.9.02.019.005.01	SS304	1.00	5.10	13.00	7.50	23.58	7.00
214	3.9.02.019.042.01	music wire	2.10	35.20	61.00	5.00	1.75	9.45
215	3.9.02.019.061.01	SS304	0.20	2.60	3.10	5.50	0.30	1.30
216	3.9.02.019.064.01	music wire	3.20	20.60	20.50	4.00	97.53	11.20
217	3.9.02.019.065.01	SS304	1.50	8.70	11.50	5.00	40.41	6.75
218	3.9.02.019.068.01	SS304	0.80	6.60	11.50	6.25	4.41	4.60
219	3.9.02.019.069.01	SS304	1.50	19.00	33.00	8.50	1.30	12.00
220	3.9.02.019.070.01	SS304	1.80	31.50	55.00	8.00	0.60	13.50
221	3.9.02.019.071.01	SS304	2.20	39.00	55.00	10.00	0.53	20.90
222	3.9.02.019.109.01	music wire	0.50	8.10	102.00	28.50	0.05	14.00
223	3.9.02.019.111.01	music wire	0.80	8.60	21.63	7.39	1.57	5.51
224	3.9.02.019.112.01	Chrome Silicon Steel	4.00	44.00	54.00	6.50	8.71	24.00
225	3.9.02.019.113.01	Chrome Silicon Steel	5.00	52.00	64.00	6.50	13.11	30.00
226	3.9.02.019.117.01	Chrome Silicon Steel	3.60	26.50	41.00	7.50	24.92	25.20
227	3.9.02.019.119.01	Chrome Silicon Steel	3.80	26.70	46.20	7.25	32.41	25.65
228	3.9.02.019.124.01	music wire	0.60	4.40	8.00	6.50	5.14	3.60
229	3.9.02.019.125.01	music wire	1.00	10.00	67.00	10.80	1.53	10.30
230	3.9.02.019.135.01	SS304	3.50	25.50	33.00	5.00	41.99	15.75
231	3.9.02.019.151.01	Chrome Silicon Steel	12.00	82.00	145.00	7.00	118.49	78.00
232	3.9.02.019.173.01	SS304	0.50	8.30	28.00	12.00	0.12	5.75
233	3.9.02.019.241.01	Chrome Silicon Steel	10.00	46.00	80.00	6.50	466.77	60.00
234	3.9.02.019.242.01	SS304	0.20	2.00	10.00	12.00	0.25	2.60
235	3.9.02.019.244.01	SS304	0.30	6.50	5.00	4.00	0.15	1.05
236	3.9.02.019.245.01	SS304	0.30	2.00	10.00	10.00	1.84	2.85
237	3.9.02.019.261.01	music wire	1.50	18.00	44.00	7.50	2.01	10.50
238	3.9.02.019.262.01	music wire	0.80	10.00	20.00	7.50	0.94	5.60
239	3.9.02.019.267.01	Chrome Silicon Steel	8.00	38.00	65.50	6.50	330.38	48.00
240	3.9.02.019.277.01	SS304	0.40	3.00	7.00	8.00	2.17	3.60
241	3.9.02.019.298.01	SS304	0.20	2.00	5.00	7.00	0.49	1.60
242	3.9.02.019.302.01	Inconel 750	2.50	32.50	40.00	9.00	1.81	21.25
243	3.9.02.019.307.01	SS304	1.00	14.00	120.00	23.00	0.19	22.50
244	3.9.02.019.316.01	SS304	1.40	11.80	30.00	9.358	4.15	12.40
245	3.9.02.019.317.01	SS304	1.20	11.40	30.00	10.42	2.07	11.90
246	3.9.02.019.318.01	SS304	0.70	9.90	24.00	7.315	0.52	4.77
247	3.9.02.019.319.01	SS304	0.80	10.10	24.00	6.876	0.93	5.10
248	3.9.02.019.320.01	SS304	0.80	10.10	24.00	8.27	0.73	6.22
249	3.9.02.019.322.01	music wire	0.75	15.88	50.80	7.50	0.16	5.25
250	3.9.02.019.332.01	Chrome Silicon Steel	3.00	14.00	25.00	5.00	198.80	13.50
251	3.9.02.019.335.01	SS304	6.00	43.50	220.00	18.00	13.73	105.00
252	3.9.02.019.341.01	music wire	2.60	16.00	15.30	4.00	93.06	9.10
253	3.9.02.019.343.01	music wire	1.00	11.00	65.00	17.50	0.63	17.00
254	3.9.02.019.345.01	music wire	1.00	11.00	32.60	8.50	1.51	8.00
255	3.9.02.019.348.01	music wire	2.00	50.00	100.00	8.00	0.24	15.00
256	3.9.02.019.358.01	music wire	2.00	16.00	51.20	10.00	7.14	19.00
257	3.9.02.024.002.01	SS304	0.25	3.20	65.00	40.50	0.04	10.00
258	3.9.02.026.001.01	SS304	1.60	14.20	41.60	9.00	4.18	13.60
259	3.9.02.45.001.01	SS304	1.00	6.80	10.50	5.00	15.27	4.50
260	3.9.02.58.001	music wire	0.65	6.90	16.00	5.60	1.99	3.32
261	3.9.02.64.001.01	SS304	1.80	12.00	24.50	6.50	19.65	10.80
262	3.9.02.64.002.01	SS304	1.60	12.00	20.00	6.50	11.57	9.60
263	3.9.02.83.001.01	music wire	0.80	8.00	11.00	5.00	3.58	3.60
264	3.9.02.99.001.01	SS304	1.60	13.60	55.00	12.00	3.39	18.40
265	3.9.02.017.038.01	SS304	1.50	15.00	20.00	7.00	4.03	12
266	3.9.02.017.039.01	SS304	1.50	15.00	30.00	10.00	2.52	16.5
267	3.9.02.017.040.01	SS304	0.10	4.00	50.00	10.00	0.002	4.4
268	3.9.02.017.042.01	SS304	1.50	20.00	150.00	28.25	0.27	43.88
269	3.9.02.017.046.01	SS304	0.50	4.00	50.00	30.50	0.46	15.75
270	3.9.02.017.047.01	SS304	0.50	7.00	50.00	18.75	0.12	9.88

Reference

Click on the thumbnail to enlarge image.

Solid Height

Free Length

Compression Springs
